Channel lighting system

Channel S

The new Channel S is the more streamlined version of the well-known and popular Channel lighting system. Despite its almost 50% smaller cross-sectional area, it now supplies significantly higher luminous fluxes. Whether applied as an individual luminaire or a system, recessed, surface-mounted or pendant – it makes for optimum ambient lighting in any kind of space. With its three different optics the Channel S range can be used not only in the office itself, but also in adjacent zones such as corridors and meeting rooms as well as many other areas of application. The luminaire is available in the fixed colour temperatures warm white (3000 K) or neutral white (4000 K). The Tunable version (2700 K - 6500 K), which is available with a choice of opal or micro-prismatic optics, enables you to vary the colour temperature of the light infinitely between warm white and cold white.



Features Features
  • "S" as in slim: Aesthetic design, extremely compact dimensions, 65 x 60 mm
  • Available with integrated RUN Diffuser or office-compatible RUN+ Diffuser for continuous, seamless lines of light allowing precise planning up to 24 m length
  • Through the combination of LED inserts in various lengths (from max. 3 m to min. 5 cm) and the economic master-slave principle, batten luminaires in any length can be created in steps of 5 cm
  • Channel S Boost Office: very aesthetic louvre optics optimized for LED, particularly efficient, planning according to EN 12464-1, up to 3600 lm / 1,2 m
  • Economical overall solution featuring maximum ergonomics for the user
  • Visually perfect transition from profile to diffuser without gasket
Spezifikation Spezifikation
  • 100% direct light emission
  • End faces feature expansion compensation, generating a visually seamless, flush-mounted diffuser effect
  • Support profile and ends (visible part) in natural anodised aluminium
  • No visible screws
  • Colour temperature can be adjusted individually with the Tunable White technology
  • LED batten luminaire replaceable on site
  • Dimmable digital DALI
  • Operating unit integrated
  • Also available as system with cover frame
  • Also available ceiling and wall mounted luminaires as well as system without cover frame


COMPONENTS

Support profile and accessories


Support profile for channel lighting system Channel S

with ceiling trim for recessed mounting, smallest system


Support profile for channel lighting system Channel S

with ceiling trim for recessed mounting, initial/end module


Support profile for channel lighting system Channel S

with ceiling trim for recessed mounting, centre

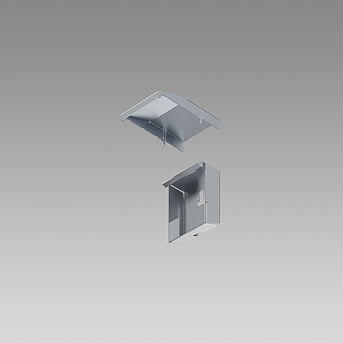

Kit of end faces Channel S

with ceiling trim for recessed mounting


Corner connector Channel S

with ceiling trim for recessed mounting


Support profile for channel lighting system Channel S

without ceiling trim for surface and recessed mounting, smallest system


Support profile for channel lighting system Channel S

without ceiling trim for surface and recessed mounting, initial/end module


Support profile for channel lighting system Channel S

without ceiling trim for surface and recessed mounting, centre


Kit of end faces Channel S

without ceiling trim for surface and recessed mounting


Corner connector Channel S

without ceiling trim for surface and recessed mounting


Profile connector kit Channel S


Splint washer kit Purelite

for mounting of the support profile


Mains connection kit Channel S Up


Cable support kit Channel S


Mounting kit Channel S

for recessed mounting


Mounting spring Channel S

to compensate for uneven surfaces


Wire cord suspension kit Channel S

for pendant mounting


Canopy kit Universal


Wall retainer kit Channel S


Gasket kit Channel S

IP40


Dismantling tool Purelite

Batten luminaire


Batten luminaire Channel S

for RUN Diffuser or office-compatible RUN+ Diffuser


Batten luminaire Channel S

for corner connector


Mains wiring for corner connector Channel S


Batten luminaire Channel S Boost Office


Batten luminaire Channel S

asymmetric


Batten luminaire Channel S Office


Blind cover kit Channel S

RUN+/RUN/Boost Office, direct


Conductor track kit Channel S

with conductor track Global Trac Pulse


Sensor kit Channel S


Remote control Channel S

Diffuser


Diffuser Channel S Office

RUN+, rollable and office-suitable


Diffuser Channel S

RUN, rollable optics


Cutting aid Channel S

for RUN Diffuser or office-compatible RUN+ Diffuser


Diffuser Channel S Office

Initial/end module


Diffuser Channel S Office

centre


Dilatation kit Channel S Office
