NEO / NEO+
Unlock the power within
Break out of the ordinary lighting matrix and enter a whole new dimension of light. Awaken your space from darkness and be seduced by the choice between NEO and NEO+. Both guarantee standard-compliant lighting for office environments. With NEO+, you achieve the highest level of glare control: With a luminance of less than 1'500cd/m2, NEO+ is the ideal choice for particularly demanding visual tasks. Choose your path with the striking U-foot or the solid T-foot and anchor your lighting world firmly in reality. NEO is equipped for the future. Thanks to MDA 3.0 on board, the luminaire is already prepared for the IoT solution MyData Analysis. Immerse yourself in a world of light that will change you. NEO - the key to your illuminated future.

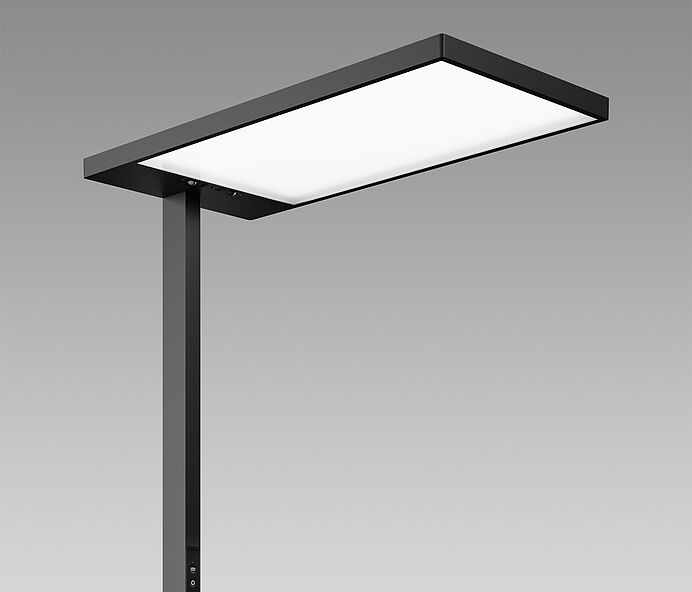

NEO and NEO+ for maximum glare control in the office
With its asymmetrical light distribution, the NEO free-standing luminaire ensures that you are always surrounded by the best light to work efficiently and comfortably. In the standard version, the NEO free-standing luminaire offers a UGR (Unified Glare Rating) of less than 10 and luminance levels of less than 3'000cd/m2. This means that annoying glare is avoided and you can enjoy a pleasant working atmosphere. For even more demanding requirements, we recommend our NEO+ variant. With a UGR of less than 10 and impressive luminance levels of less than 1'500cd/m2 , new standards in glare-free lighting. Be inspired by the outstanding quality of light!
Uncompromising in illumination and homogeneity
NEO and NEO+ impress with an asymmetrical light distribution. This signifies that the light is not focused directly under the luminaire head, but is ideally distributed over the entire table with ingenious optics.

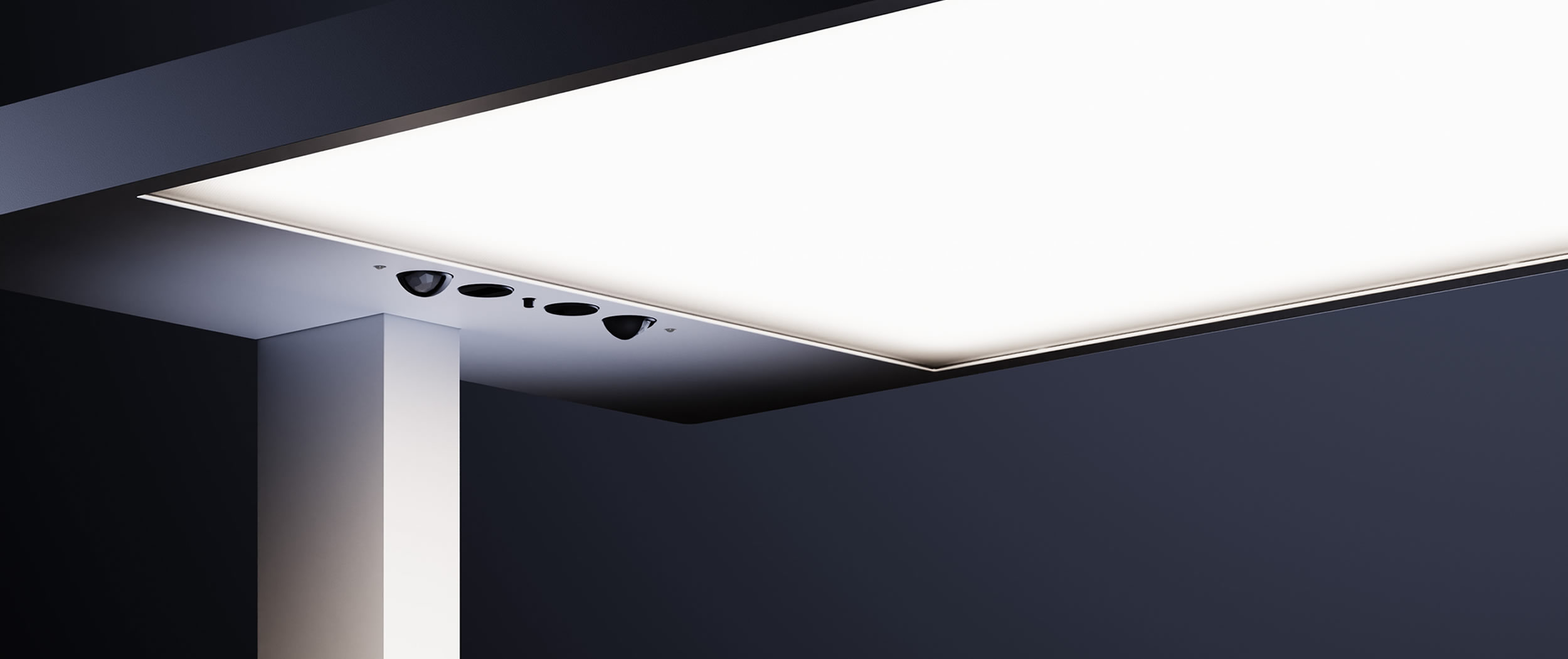

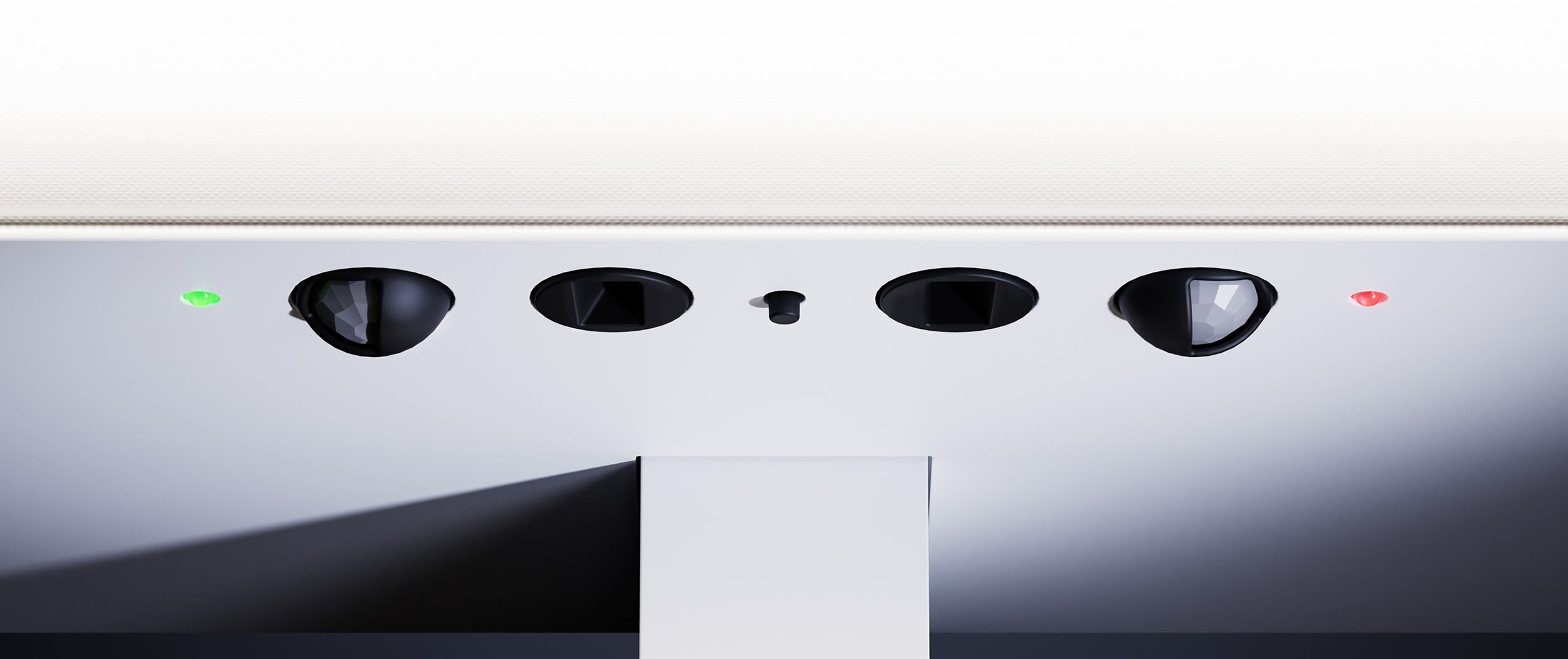

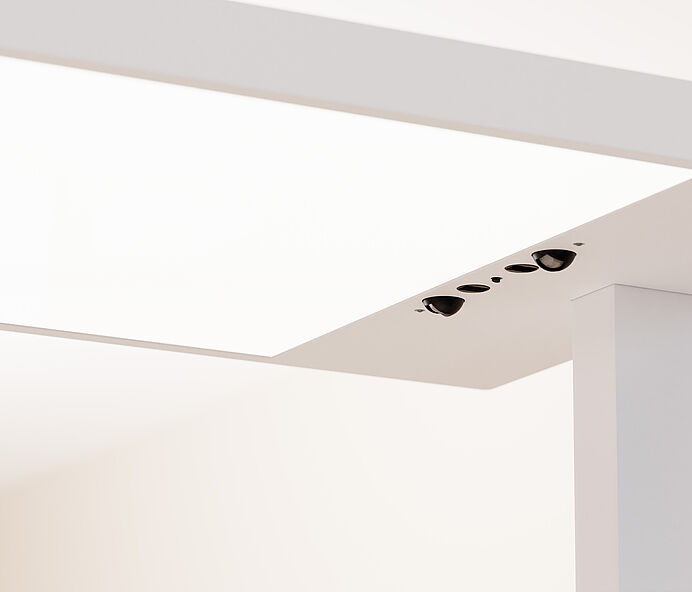

Two motion sensors for single-user detection
Our developers have succeeded in integrating the sensor technology and signalling inconspicuously and elegantly into NEO. Like the hidden power of the matrix, the sophisticated sensor technology with extended detection range not only detects two work tables but also the presence in the entire work area and regulates the light accordingly. Two signal LEDs and an operating button are placed next to the sensors. Activated with the MyData Analysis system, they reveal valuable information to the user. Immerse yourself in a world where technology and aesthetics merge.

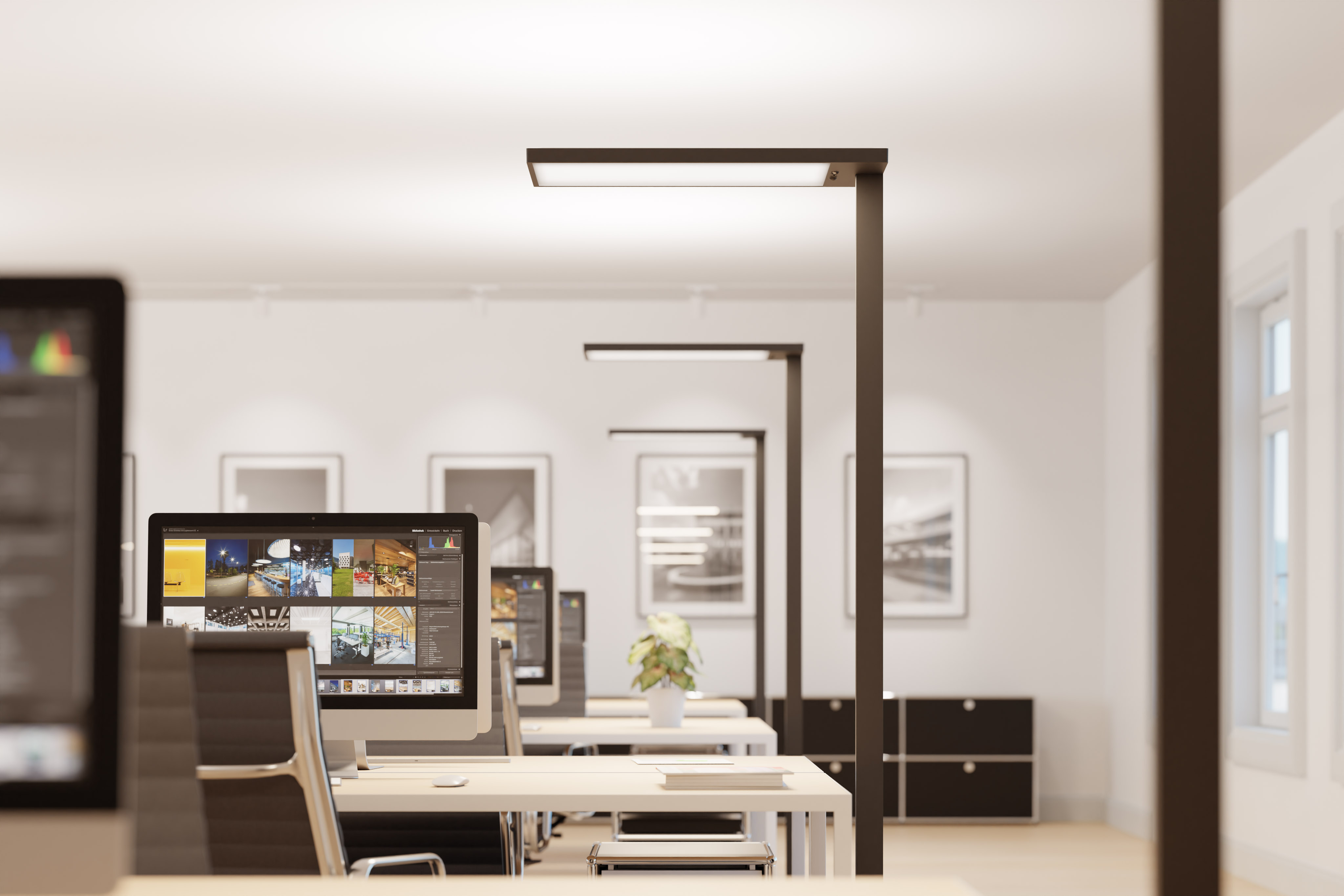

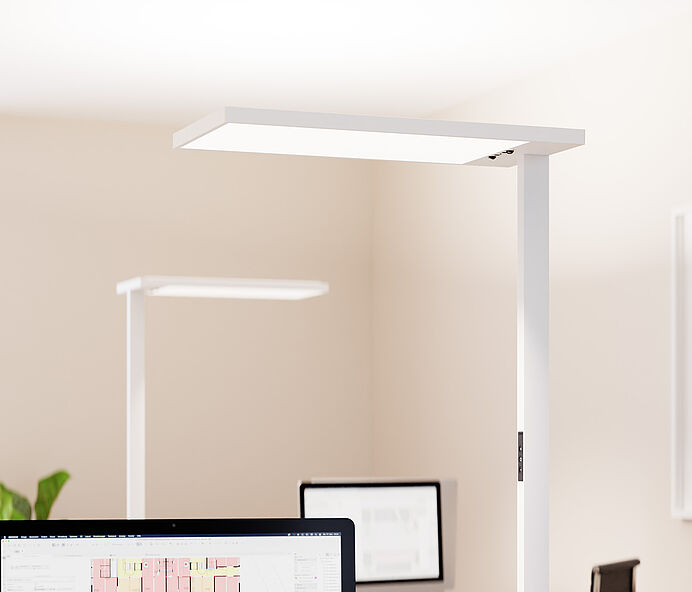

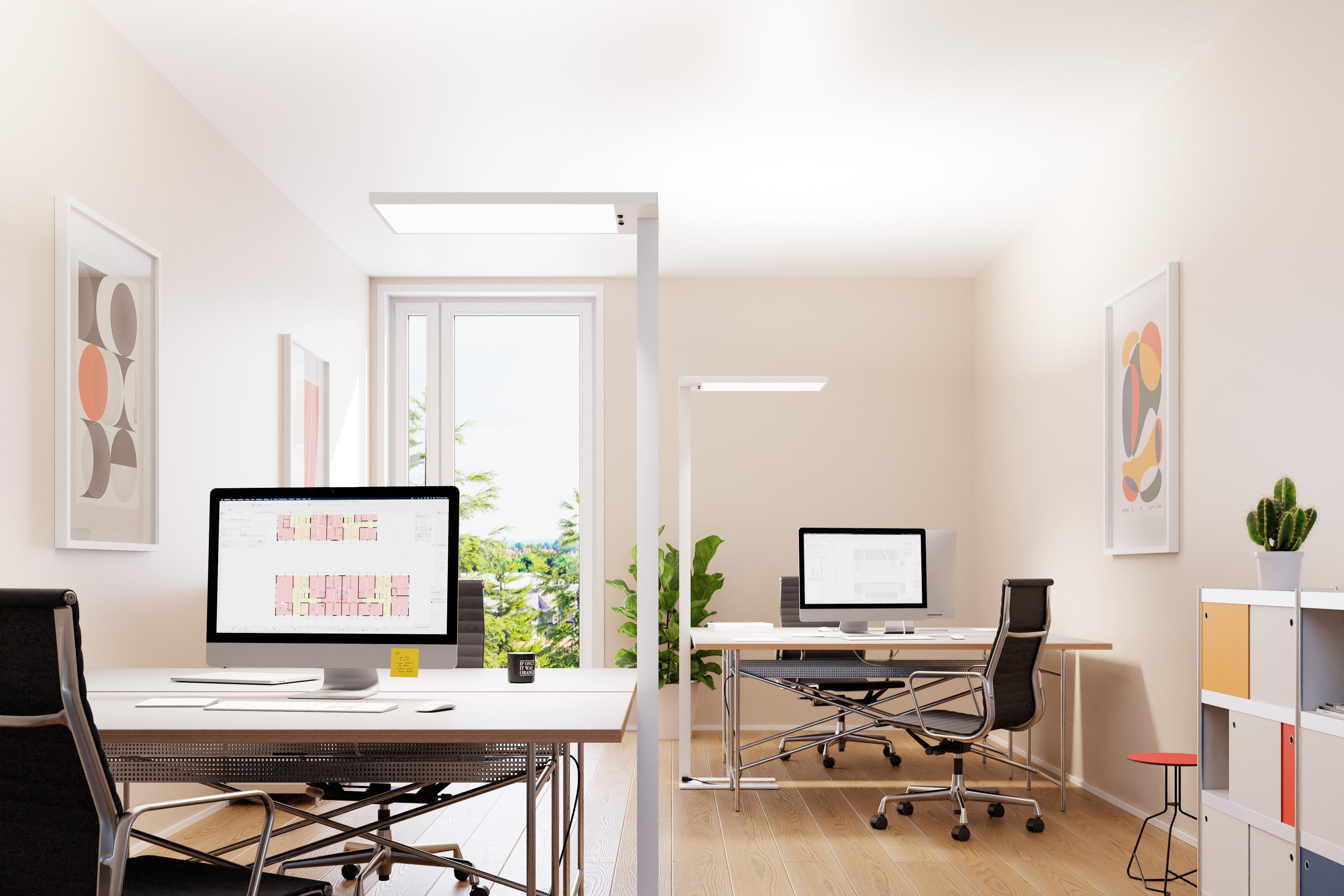

Neo and Neo+ ideal for single workstations as well as for double workstations. The light and the detection range are perfect at all times.
Individual
Every person has unique needs, also in terms of light and operation. NEO offers you the choice between the 1-channel and 2-channel versions. The 1-channel version is available both with and without a control element. The NEO+, on the other hand, is always available in the 2-channel version with an operating element on the standpipe. All versions are equipped with a small push-button next to the sensor head, which you can use to additionally operate the luminaire. With NEO, no preference goes unnoticed - adjust the light entirely according to your individual needs.
Attention to detail from head to toe

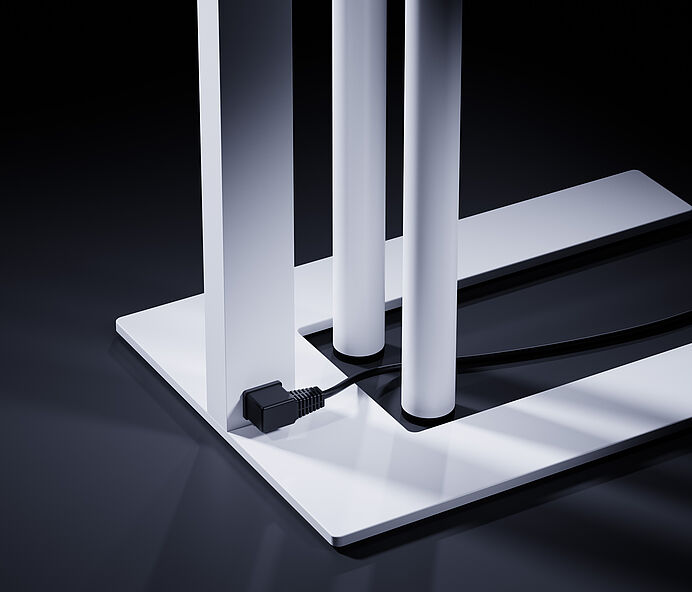

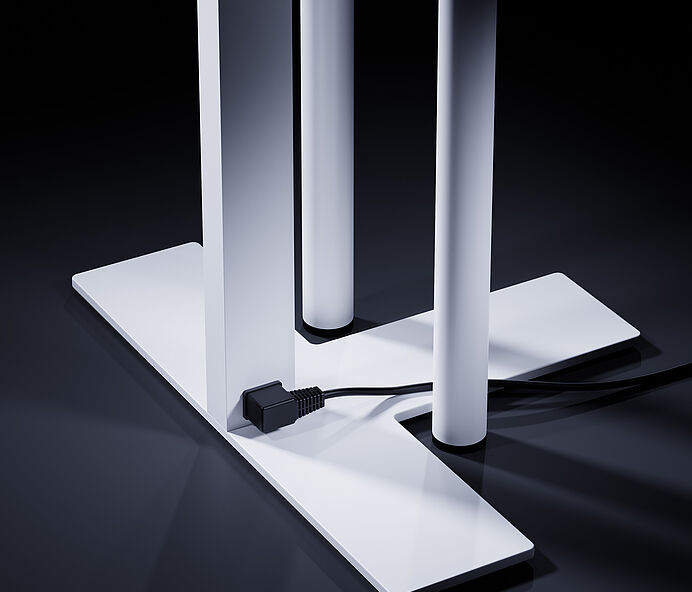

Thought ahead for comfortable mounting without conflict with the table. Neo and Neo+ are available with a U and a T footplate. Neo can therefore not be stepped on by any table.
The assembly of the head as well as the base is done easily. This saves time and money when it comes to equipping the building with new floor luminaires.
Neo and Neo+ are available with a U and a T footplate.
Networked into the future with Regent.cloud
NEO and NEO+ is already fully prepared with integrated MTM module for digital product solution MyData Analysis and Regent.Cloud, where data from the environment is collected and analyzed in real time. The smart building system offers new possibilities for building management and helps optimize space utilization and operating costs in your company. With the directly integrated sensor, data on building utilisation, occupancy data and cleaning requirements can be collected and evaluated via the regent.cloud application in order to identify optimisation potential. With the additional module MTM SENS, further sensor data can also be collected and evaluated. Increasing efficiency, saving costs and gaining time - all this is made possible by NEO and NEO+ with MyData Analysis.
.Comfort and well-being with ALONEatWORK®.
When the lights gradually go out in open-plan offices, veritable islands of light appear around the desks of individual people. The abrupt transition from light to dark conveys a feeling of isolation. And because our performance is heavily dependent on light, the ability to concentrate and efficiency quickly diminish. Our intelligent ALONEatWORK® communication technology offers a sustainable answer to this challenge. With it, the luminaires communicate automatically with each other and regulate the light intensity in such a way that gentle clouds of light are created around the occupied workstations. In this way, ALONEatWORK® creates a pleasant and inspiring working atmosphere with optimised energy input for those people who are in the office for longer periods of time. ALONEatWORK® is also programmed so that the luminaires also find their way around a new configuration and adjust automatically.
Easy configuration with Flash MyLight
With Flash MyLight, a web-based app, the configuration of the NEO and NEO+ can be done easily with a smartphone or tablet. It is a one-way communication from the device to the daylight sensor of the luminaire. The desired settings, such as changed overrun time or activation of the plug-in circuit, are entered in the app and then transmitted to the luminaire. The display is held directly against the lens of the daylight sensor and the desired settings are transmitted. After successful data transmission, the NEO and NEO+ flash to confirm - done!
NEO - the one
Function, skill, design and technology combined in a single product. NEO is the future-oriented all-rounder that fits seamlessly and stylishly into any office concept.
Assortment
NEO and NEO+ are available in the colours white, black and silver, as well as in the light colours 3000K and 4000K. Project enquiries for other colours and light temperatures are possible.
Features
- Office-suitable designer luminaire with microprismatic optics
- Direct light and indirect light can optionally be adjusted separately (2-channel)
- Asymmetrical light distribution for optimum illumination of the workplace
- High luminaire efficiency of up to 162 lm/W
- High-quality one-piece housing made of die-cast aluminium
- Configuration possible via "Flash MyLight" web app
- Smart lighting technology: MyData Analysis and ALONE at WORK®
- Future-proof thanks to integrated WLAN and Bluetooth module for the MyData Analysis smart building system
- Individual workstation sensor technology for separate presence detection (e.g. for workstation booking system)
Specifications
- Luminous flux 12'200 lm / 12'800 lm.
- Direct/indirect beam (18%/82%)
- Height: 2000 mm
- Color temperatures: 3000K and 4000K
- Deglare with Neo+ < 1'500cd/m2
- Case colors: white, black, silver.
- Footplates: U-foot or T-foot
- Operator integrated
- Available with or without control element in the standpipe.
- Accessories: communication module ALONE at WORK
