Track spotlight

Sua

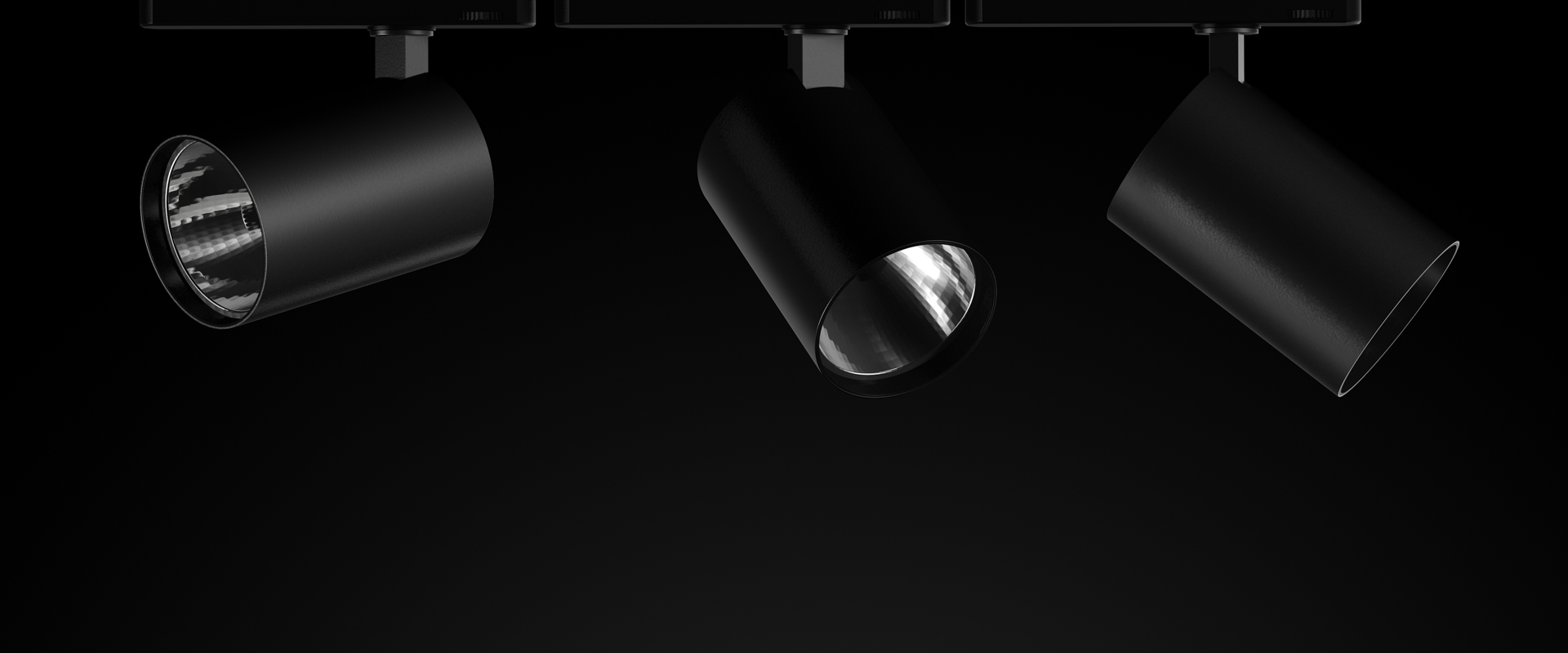

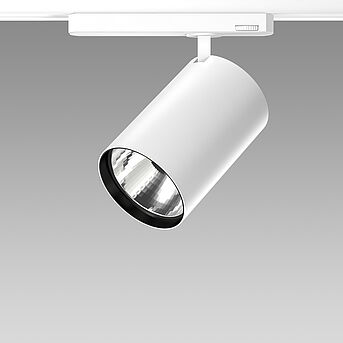

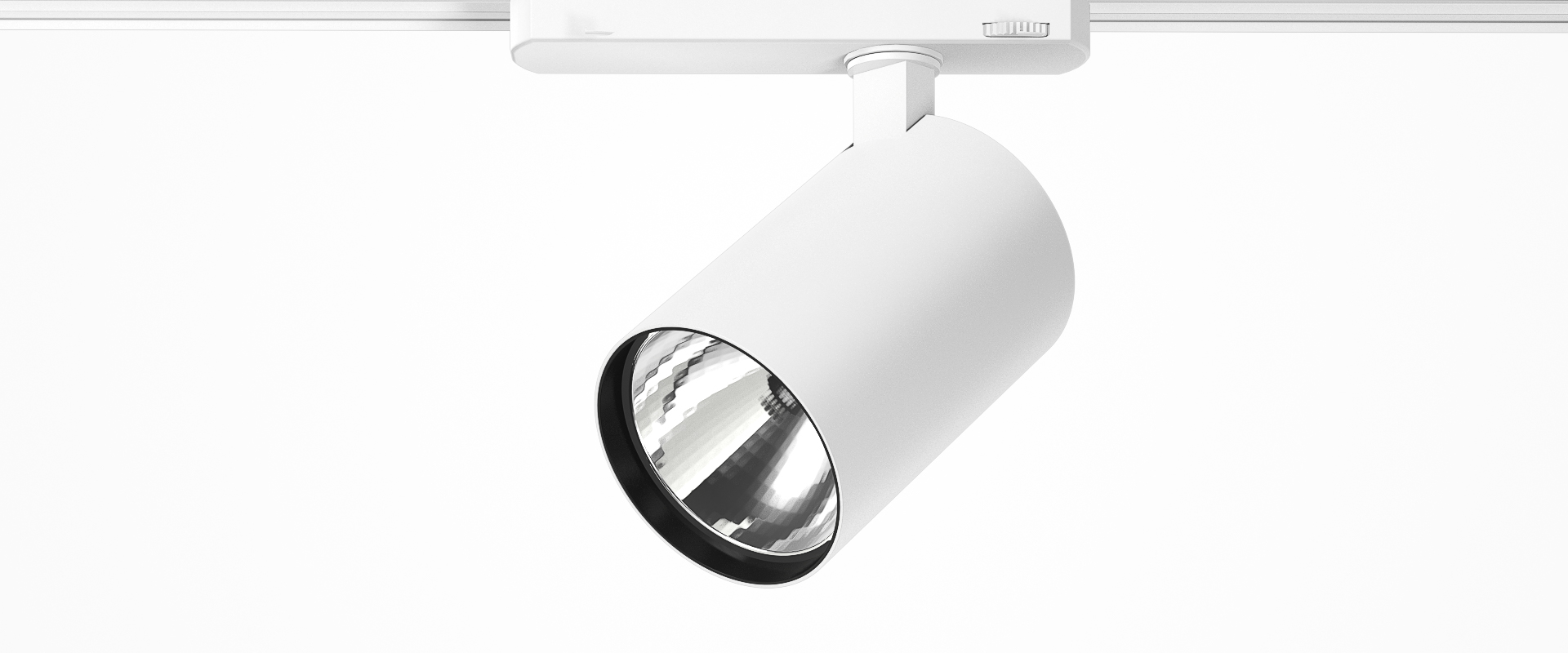

SUA aesthetically highlights any object while remaining discreetly in the background. The small track spotlight offering a wide choice of beam angles provides powerful light for various fields of application. At the same time, it boasts a simple and unpretentious design. The slim luminaire body made of high-quality material with a diameter of only 80 mm for all wattages and the invisible control gear, which is integrated into the track adapter, enable a uniform appearance for all possible combinations. SUA unites powerful illumination with unobtrusive aesthetics.



Features Features
  • No external control gear housing
  • Control gear incorporated into track adapter
  • Also available with extremely narrow beam angle of 14°
  • High luminous flux of luminaire of up to approx. 3000 lm
  • Simple cylindrical design
  • Discreet and compact, Ø 80 mm
  • Consistent visual appearance thanks to same housing dimensions for all versions
  • Excellent colour rendering: CRI ≥ 90
  • Also available with especially warm colour temperature 2700 K
  • High luminous efficacy of up to 103 lm/W
Specifications Specifications
  • ON/OFF or dimmable digital DALI
  • Designed for Global Trac Pro (ON/OFF) 3-circuit track and Global Trac Pulse (DALI)
  • Available in white, silver and black
  • Beam angles: 14°, 17°, 23°, 33°, 60°
  • Operating unit integrated
  • Passive cooling
  • High-quality die-cast aluminium housing
  • Pure aluminium reflector
  • Flexibly adjustable: rotatable 350°, tiltable 90°

Fields of application Fields of application
  • Retail & Hospitality
    retail spaces, exhibition spaces, restaurants, foyers and lobbies, corridors, galleries, museums
  • Office & Education
    reception desks, libraries, offices
Version
0 Article
System power
11 W
12 W
14 W
16 W
18 W
20 W
25 W
27 W
29 W
31 W
32 W
33 W
Beam angle
14°
17°
23°
33°
60°
Colour / Finish
black
silver
white
Colour temperature
2700 K warm white
3000 K warm white
4000 K neutral white
Light control
ON/OFF
DALI
Casambi
