Channel lighting system

Purelite

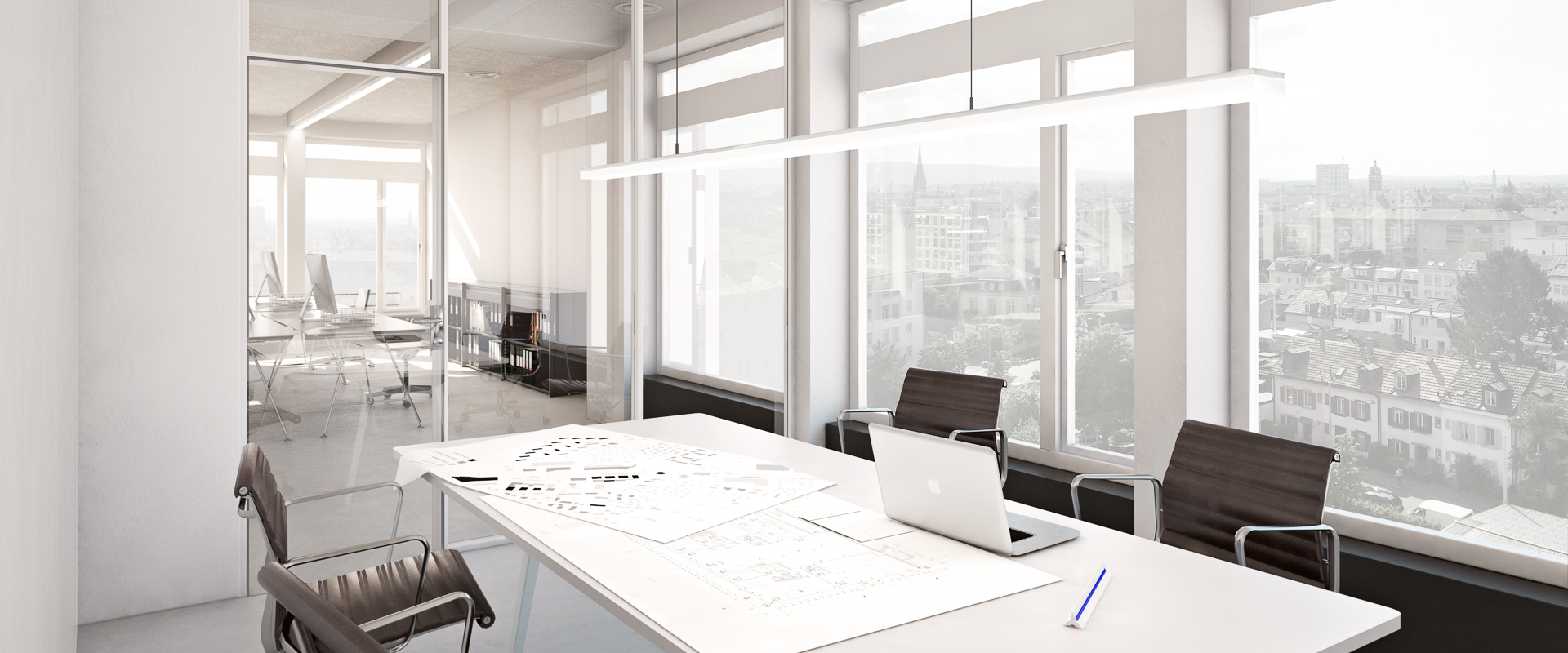

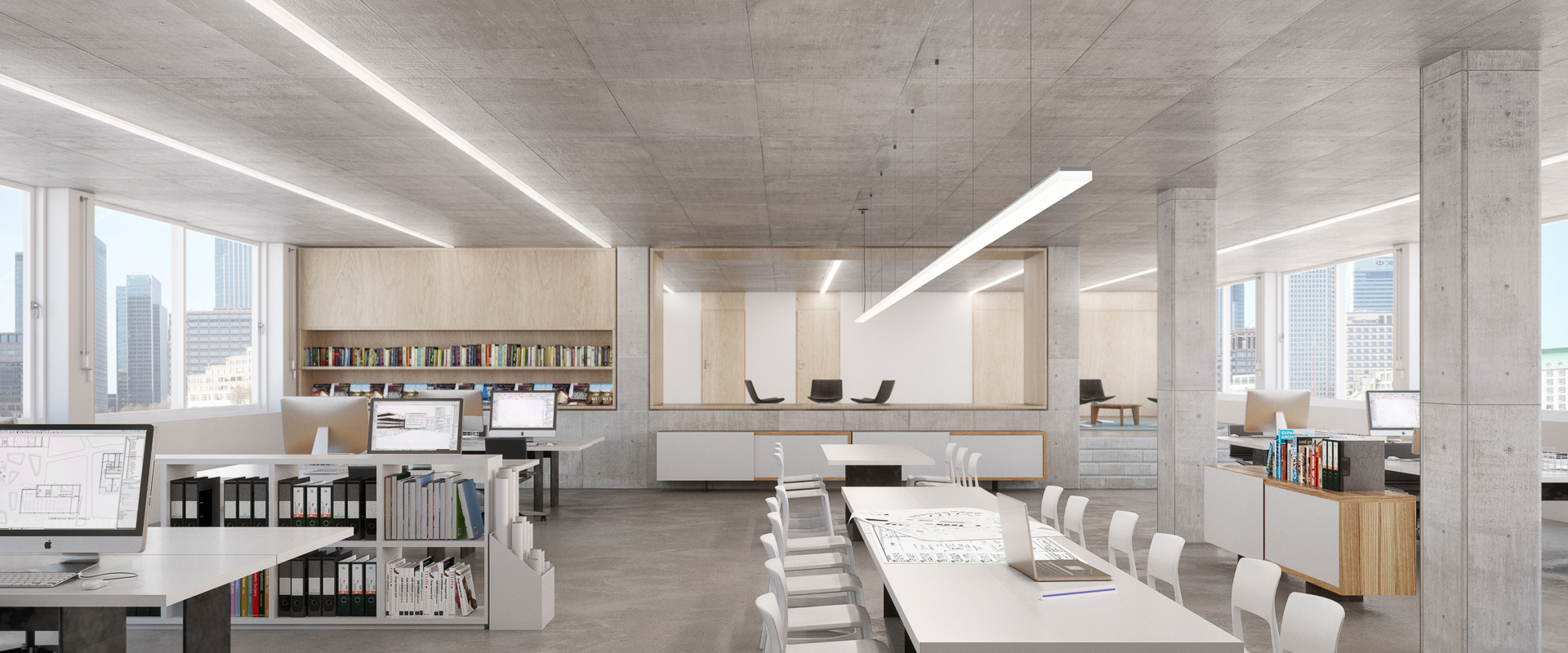

The new generation of row lighting systems: easy to plan with and install thanks to its ultra-flat design with a height of just 35 mm incl. control gear. The recessed version can be integrated into any concrete ceiling at any time: given that the recessed depth for mounting the luminaire is 19 mm max., it remains well below the rebars. The surface-mounted version features beautifully clear lines of light that softly illuminate the ceiling – now also in the case of renovation projects. In other words, this row lighting system can be added to a design concept at the last minute, if required. The version with the indirect light component delivers 3100 lm per 1.2 metres and is suitable for application in office spaces. The highly innovative plug-in system already contains wireless throughwiring. Besides offering a high degree of flexibility right up to almost the close of a building project, Purelite guarantees ultra-flat, uninterrupted, shadow-free lines of light.



Features Features
  • Simple to integrate into the architecture thanks to its ultra-flat design: height of only 35 mm incl. control gear
  • Shadow-free lines of light, incl. illumination of the ceiling, timeless design
  • Suitable for application in offices thanks to microprismatic optics with a UGR < 19 at 3100 lm/1.2 m; up to 3330 lm/1.2 m with an opal diffuser
  • Clip-in LED batten with integrated through-wiring for quick and easy mounting
  • For mounting in rows greater than 2250 mm, all lengths in increments of 150 mm
Spezifikation Spezifikation
  • Support profile made of anodised aluminium, natural finish
  • LED batten luminaire replaceable on site

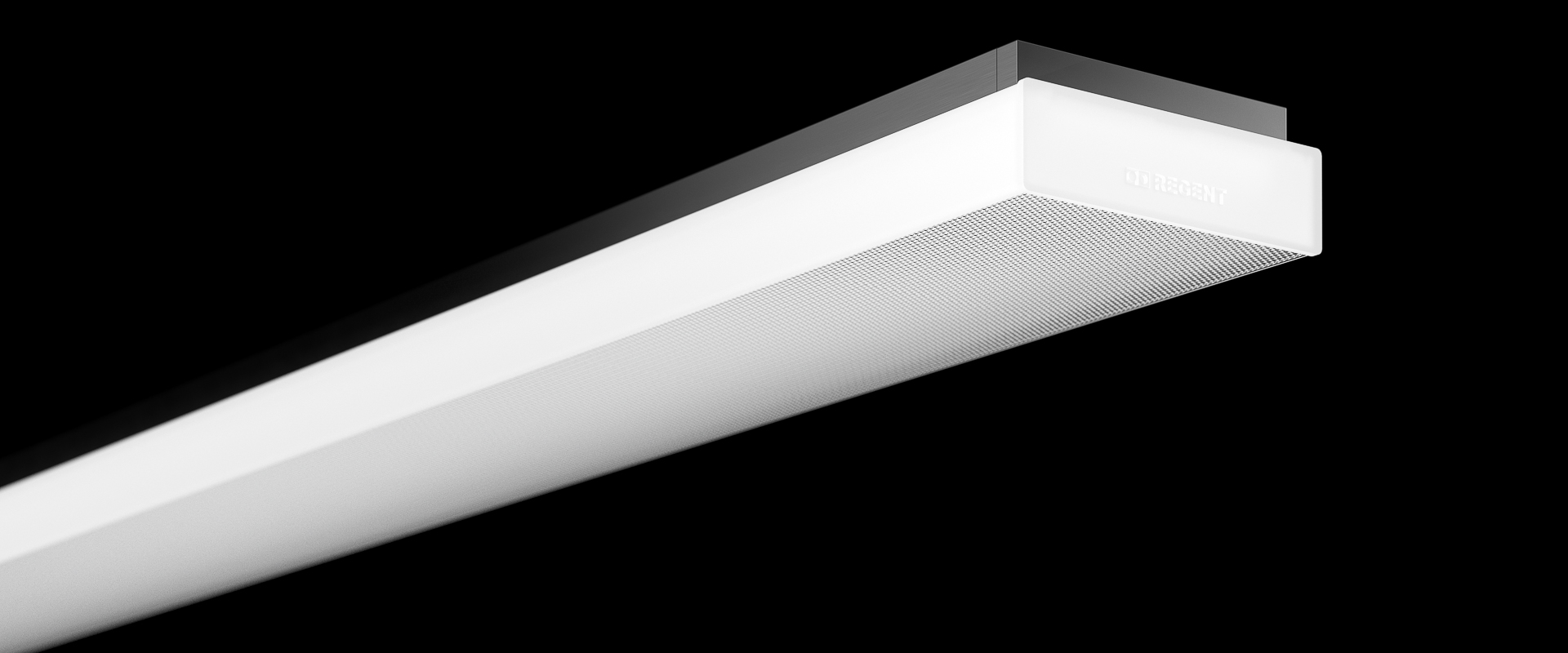

  • Omni-directional, incl. illumination of the ceiling (version available with direct lighting – Purelite D)

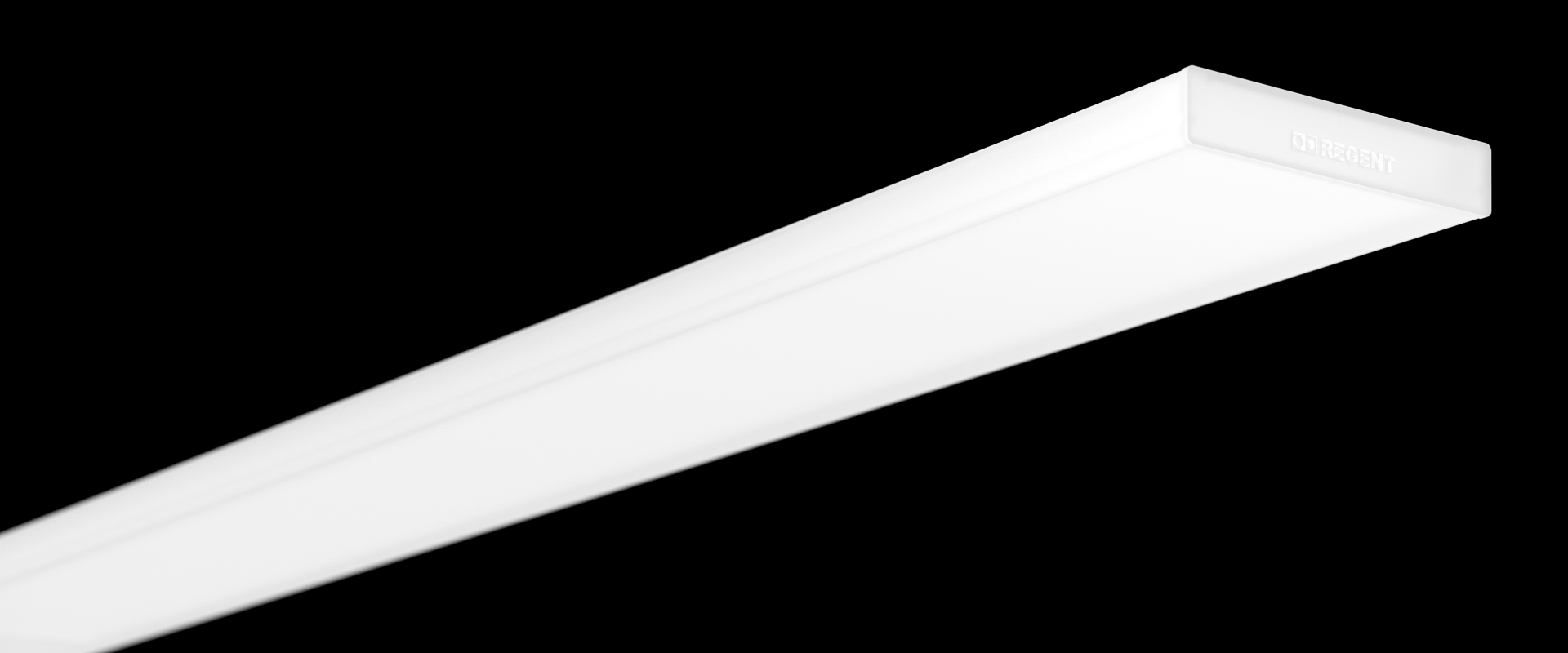

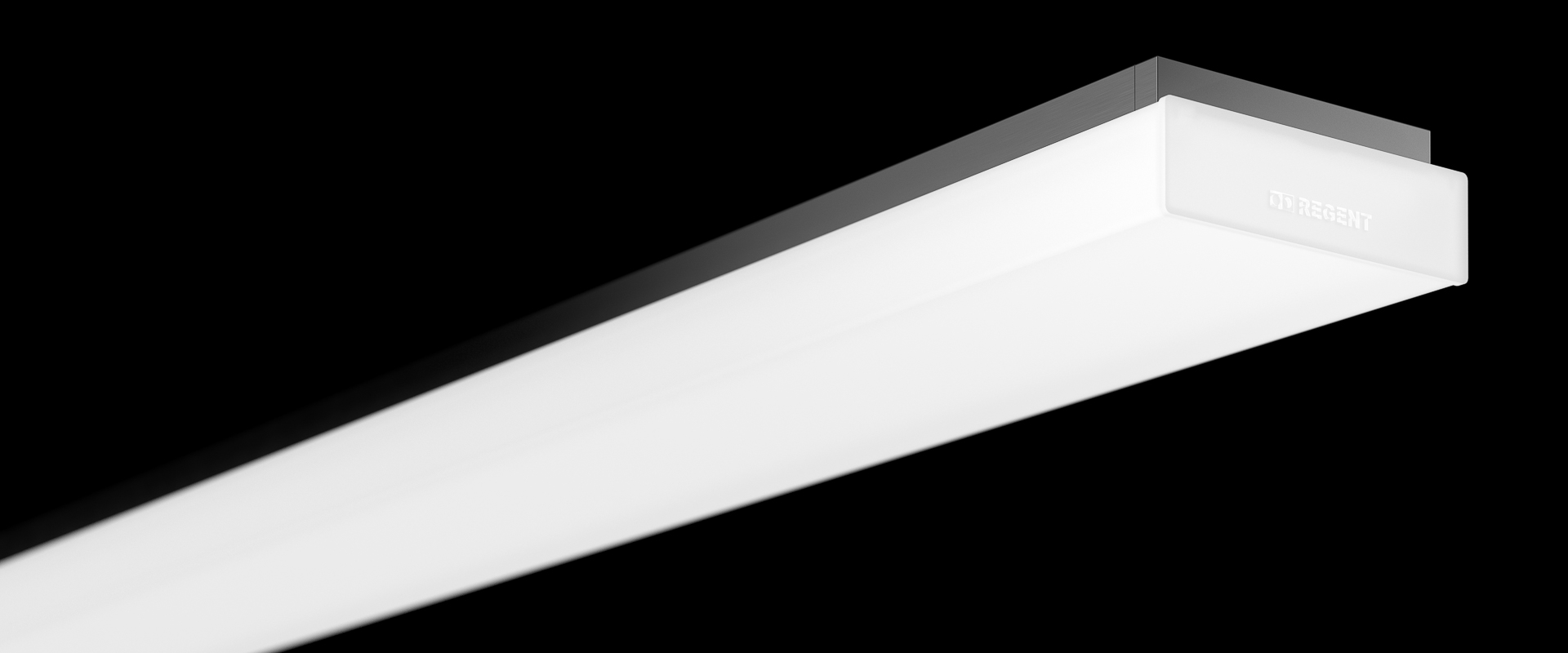

  • Micro-prismatic CLD optics or opal diffuser made of high-grade plastic
  • dimmable digital DALI + ON/OFF



COMPONENTS

Support profile and accessories

recessed Surface mounted luminaires Pendant

Support profile for channel lighting system Purelite


Kit of end faces Purelite


Profile connector kit Purelite


Splint washer kit Purelite


Infeed kit Purelite


Suspension kit Purelite


Mounting spring Purelite


Mounting kit Purelite


Dismantling tool Purelite

Batten luminaire


Batten luminaire Purelite

Start/intermediate module


Batten luminaire Purelite

Intermediate module


Batten luminaire Purelite

End module

Diffuser


Diffuser Purelite Office

for recessed mounting


Diffuser Purelite Office

for recessed mounting, with 2 end faces


Diffuser Purelite

for recessed mounting


Diffuser Purelite

for recessed mounting, with 2 end faces


Diffuser Purelite Office

for surface mounting


Diffuser Purelite Office

for surface mounting, with 2 end faces


Diffuser Purelite

for surface mounting


Diffuser Purelite

for surface mounting, with 2 end faces


Diffuser kit Purelite Office


Diffuser kit Purelite


Cutting aid Purelite
