Channel lighting system

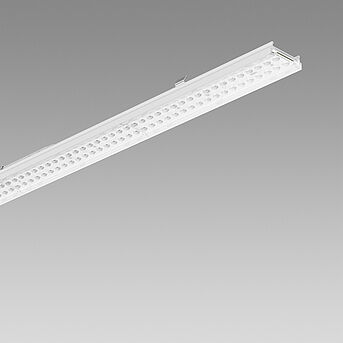

Titan Linear

TITAN redefines high-performance lighting: robust, efficient and versatile, it combines power with architecturally appealing aesthetics. Its well-thought-out linear form and outstanding performance make it an ideal solution for demanding environments, both as a standalone luminaire and as part of a modular system. With a ball-proof and impact-resistant construction (IK08) and IP54 protection as standard, it ensures uniform illumination. Its modern lens optics ensure optimum efficiency, making TITAN the perfect choice for sports halls, multi-purpose halls, large interiors and covered outdoor areas. Its durable materials, flexible application options and mounting options have truly earned it its name.

Features Features

Meets all sports lighting requirements and combines them with the installation advantages of a modular light band system
Integrated RUN diffuser for even and seamless light lines

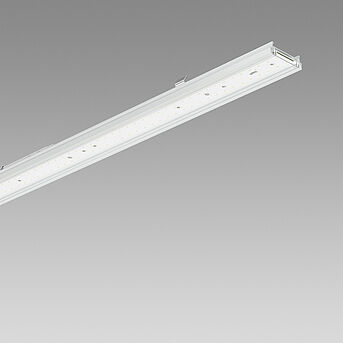

Optional lighting system with opal or transparent diffuser, customised to the application
Robust and high-quality, ideal for sports and multipurpose halls
Diverse design options, such as multiple parallel connected light channels, as well as additional accessories available on request
Suitable for ceiling recessing, ceiling surface mounting, wall surface mounting and pendant mounting

Spezifikation Spezifikation

Standard-compliant ball impact safety in accordance with DIN EN 18032-3 tested by TÜV SÜD (accredited test laboratory)
Rollable RUN diffuser for an uninterrupted look, can be shortened on site
IP54 protection as standard for individual luminaires and system luminaires up to 4.5 m

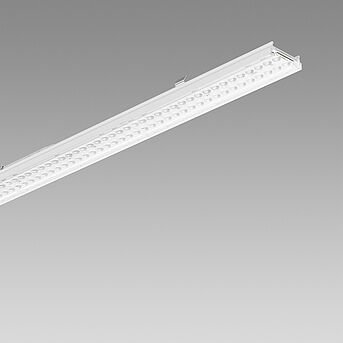

Four application-specific beam characteristics
Maximum efficiency thanks to state-of-the-art lens optics (163 lm/W)
Aluminium mounting rail, natural anodised
Various length combinations: 1.5 m, 3 m, 4.5 m or a multiple thereof up to a maximum of 21 metres with an uninterrupted diffuser
Suitable for ceiling recessing, ceiling surface mounting, wall surface mounting and pendant mounting
Digitally controllable with DALI 2 for amplitude dimming
DALI2 digitally controllable and addressable
